A wind turbine is a long term investment. Before you purchase a wind turbine, the first factor to consider is if the energy produced by a wind turbine can pay for itself in 10 years or less. In order to achieve this, the wind turbine must be a high quality, reliable, maintenance free wind turbine with excellent performance.
The second factor to consider is installation and ownership cost. Poor reliability, low quality and high maintenance will greatly increase ownership cost and make the wind turbine impossible to pay for itself.
The third factor is environment and safety. A wind turbine should be safe for high winds, quiet and have no vibrations to make it residential/home friendly.

HYenergy® wind turbines can meet the above requirements and do much more:

• Designed and built by an experienced wind turbine technology R&D team that are committed to innovation and quality.
• CE certified for "Small Wind Turbine with High Reliability".
• ISO certified for "Design, Development and Manufacture of Small Wind Turbines".
• Amazingly quiet operation with little or no vibration. Conforming to the IEC 61400-11 wind turbine standard for Noise Measurement
• Reliable two-moving-part maintenance free design. No problematic furling.
• Fully automatic with blade aerodynamic braking and controller electromagnetic braking.
• High efficiency is achieved by matching the design of the generator and blades.
• Patented Blades with twisted aerodynamic design and high efficiency are made using the latest advanced thermoplastic engineering and precision injection molding technology for highest strength, consistency of quality, performance and durability.
• Easy installation, no welding needed. Pole connector provided for standard Schedule 40 2" pipe pole.
• High quality generator design with strong neodymium magnets. Every magnet must go through stringent tests before use !
• The blades are made of high-strength Nylon-fiberglass materials. They are not the hollow fiberglass blades which are dangerous in high wind and need to be replaced in a couple of years.

HYenergy® wind turbine is the next generation system built with advanced technology, it is light weight and easy to install. It performs much better and much more reliable than older style wind turbines using furling which is the outdated technology.

920W Maximum wind/solar hybrid output/24v WINDMAX Wind/Solar Hybrid wind turbine system

CE and ISO certified

This system includes generator with slip ring, hub, 3 blades, nose cone, tail, wire connector, wind/solar hybrid controller, one 175w solar panel and screws/bolts/washers/nuts needed to assemble the wind generator

Old style wind turbines don't have slip ring design, the connection cable will get twisted as the wind shifts direction and requiring constant untangling. Tangled wires can be damaged and connections can be lost with potentially disastrous consequences. WindMax's Slip Ring design is the elegant solution to this problem.

Higher Efficiency = Higher Output and More Energy

920W Maximum wind/solar hybrid output, WINDMAX Wind Turbine system with High Efficiency, Electromagnetic speed limitation, blade over-speed braking and hybrid solar/wind power output capability.

We don't provide warranty for self installed wind turbines.

please read CONDITIONAL wind turbine warranty on home page for details.

Dealer Wanted, please contact us for dealer pricing

Note: We have two versions of controllers. Controller shown in above picture may be different from the controller we have in stcok, we reserve the right to ship you different controller without notice.

Side-by-side comparison of Hybrid Wind Generators with Aerodynamic Braking and Electromagnetic Braking
vs. Old Style Wind Generators with Mechanical Furling

Pictures of Installed WindMax H Series Wind Turbines from Customers

Can be used as either wind turbine only or wind/solar hybrid system.

Optional Inverter: Xantrex Inverters

Click HERE to buy inverter

Included Solar Panel: One Sharp 175W solar panel.

Main Features

Technical Specifications:



Model	HY-600
Blade diameter	5.9 Feet (1.8M)
Blade material & design	Strengthened nylon, glass-fiber. Patented Blades with twisted aerodynamic design and high efficiency are made using the latest advanced thermoplastic engineering and precision injection molding technology for highest strength, consistency of quality, performance and durability.
Number of Blades	3
Speed-limitation mechanism	Electromagnetic speed limitation and blade over-speed braking
Start-up speed	2.3 m/s or 5.1 mph
Cut-in speed	3 m/s or 6.7 mph Note: At cut-in wind speed, it produces power, but it may not be able to charge the 24V battery yet, it requires higher wind speed to reach 24V in order to charge the 24V battery
Survival speed	50 mph
Rated speed	26.8 mph or 12 m/s

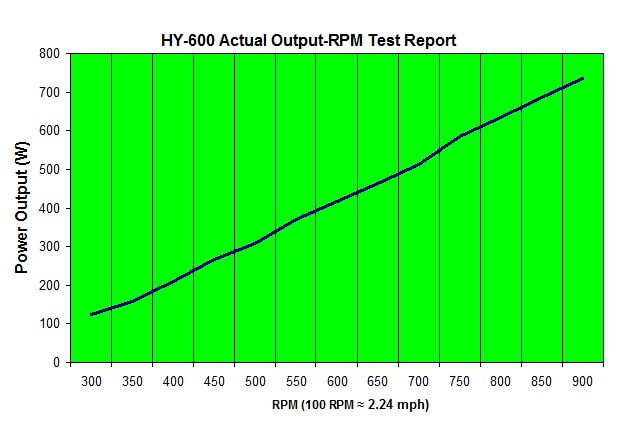

Rated power（W）	600w with wind only Actual test data provided by factory showed actual output is 734W at 900 RPM which is  rated RPM at rated wind speed.
Max power (W)	900W with wind and solar hybrid Maximum 750W for wind turbine only
Rated voltage（v）	DC24V
Alternator	Brushless 3 phase PMA with high performance Neodymium Magnets
Tower height（m）	Fits standard SCH40 2" steel pipe 8-12m(according to different project)
Solar Input	1 of 24V 175W or 2 of 12V 130W solar panels
Weight of system（LB）	50

Note: solar panel sold separately.

HYenergy Wind Turbine components built with advanced technologies

Generator:

The generator is built using high-performance rare earth neodymium permanent magnets, so the alternator is compact and light weight with a high power generating efficiency. The unique winding and multi pole design reduces the start-up torque of the alternator that assures the HYenergy wind turbine can generate electricity at low wind speed. The generator features class B insulation, IP55 class protection, and is designed with a sufficient cushion of overload to ensure overall wind turbine reliability.

Generator housing is made with precision cast technology from high strength aluminum to assure a high quality finish. It is designed for various working conditions such as severe climate, sand and salt corrosive environments. Aluminum die cast alloys can withstand the highest operating temperatures of all die cast alloys. Ideal for demanding environments, it offers high strength and rigidity along with good corrosion resistance and heat dissipation.


Rotor blades:

Patented Blade design vs. traditional hand made fiber glass blades:
Our Blades are made with the latest thermoplastic engineering and injection mold technologies. The blades are made of mixed reinforced fiber glass and nylon materials. These manufacturing technologies ensure the highest strength, flexibility of blades and consistency of the blade shapes. The blades will automatically slow the turbine in strong winds and reduce noise.

A set of 3 Blades designed to capture as much wind energy as possible. Patented airfoil blade design makes the system run much more efficiently and the rotor blades are made with the latest advanced thermoplastic engineering and precision injection molding technology.
The blades have exceptional consistency and aerodynamic outline with a mass distribution that ensures the rotors operate with nearly no noise and minimal vibration.
The blades feature lower start-up and cut-in speed.

Solar/Wind Hybrid Charge Controller:

The HYenergy Wind turbine system is the perfect choice in a smart investment for a renewable energy solution built on advanced technologies. The HYenergy wind turbine defines a new level of superior performance and reliability by using:

1. Brushless, Strong Neodymium magnet PMA, the unique winding and multi pole design reduces the start-up torque of the alternator that assures the HYenergy wind turbine can generate electricity at low wind speed.

2. Advanced aerodynamic braking by patented nylon/reinforced fiber glass blades.

3. Electromagnetic over-speed control, no more problematic mechanical furling.

4. Integrated solar-wind hybrid power generation.

5. Innovative maintenance-free two-moving-part system design.

6. Easy to Install, Light Weight and highly reliable.

The result: greater energy production yield and lowest ownership cost.

Design Features

Advanced over-speed control mechanism vs. old style furling

Problems with old style furling:
Old style furling works well in an ideal, wind tunnel test environment. Realistically, wind speed and wind direction changes frequently and mechanical furling doesn’t have instantaneous response to actual changes of wind status. Especially in bad weather conditions, small wind turbine furling components wear out quickly, therefore, increases maintenance costs and shorten wind turbine service life or causes system failure.
Most of old style furling based wind turbines have three moving parts. It is the moving parts for mechanical over-speed protection that wear out and require a lot of maintenance. Operation of furling based wind turbines would lead to mechanical abrasion, cause vibration, malfunction, and failure of the wind turbine and other devastating results in the long run.

The rule of thumb for a reliable wind turbine is that the fewer the moving parts, the more reliable the wind turbine is.

HYenergy Solution:
HYenergy wind turbine adopted Innovative over-speed control so it improves the reliability by abandoning the moving parts for mechanical over-speed protection and minimizing the moving parts to only two.

Innovative over-speed control design of the HYenergy wind turbines:

HYenergy wind turbine's speed limitation abandoned the traditional failure-prone mechanical furling system and solved safety and reliability problems facing most small wind turbines. Advanced speed limitation is achieved through advanced electromagnetic speed limitation supplemented by aerodynamic speed limitation by blade deformation. Electromagnetic braking is used in combination with Aerodynamic braking to reduce the rotational speed of the generator.
Combination of Electromagnetic braking and aerodynamic braking maximizes energy capture by extending wind turbine’s operating speed range into higher speed winds and lower speed winds which are missed by the old style wind turbines.

1. Electromagnetic speed limitation:
Controller will monitor the wind generator rotation through the wind generator output voltage and frequency, and will timely control wind generator rotation by generating reverse reluctance torque if necessary, according to different wind conditions and battery status. Electromagnetic control features quick response, high reliability and therefore ensures the entire control system to be highly reliable.

2. Blade aerodynamic braking:
In high wind speed conditions, patented blades will generate a reverse reluctance torque, so that the blade efficiency falls and the blade rotation speed starts to decline. With the continuing reluctance torque, blade rotation speed is limited to a certain range to prevent damage to the wind turbine blades.

Higher performance at low wind speed

Problem with small wind turbine system on the market today

The most challenging problem facing small wind turbine systems is that power output is very low or close to nothing under low wind condition. The wind speed in most locations don’t stay at rated wind speed all the time, wind turbine actually operates at wind speed lower than rated wind speed at most of the time. In order to have good overall energy output, it is critical for small wind turbine to output as much as power at low wind speed.

HYenergy Solution:

Strong Neodymium magnet PMA, unique winding and multi pole design reduces the start-up torque of the alternator that assures the HYenergy wind turbine can generate electricity at low wind speed. HYenergy system components such as wind generator and blades are designed to output more electricity at low wind speed than other small wind turbines on the market today. HYenergy system’s excellent power output under low wind speed results in greater energy production yield and lowest ownership cost.

Wind-solar hybrid power generation wind turbine system

Problem with single source renewable energy system:
1st Generation single source renewable energy systems such as solar systems or wind turbines don’t use renewable energy efficiently. Wind turbines creates less output during the summer, whereas during the winter the solar panels will produce less output.

HYenergy Solution:
Our HYenergy hybrid solar-wind turbine integrated wind and solar power sources capture the most energy in all conditions. Since solar and wind energy availability differs by locations, seasons and climates, solar and wind energy can be mutually complementary in that solar and wind hybrid systems make full use of wind and solar energy together to generate as much power as possible compared to a single energy source for power generation. A solar & wind hybrid system is more cost-efficient than wind or solar alone.

Easy-to-install, light weight, compact, reliable and maintenance-free wind turbines
