Product Details
Please read before purchase: The SWG FD3.6-2000 are proven systems deployed worldwide with good performance track records. Overspeed control mechanism for these wind turbines is mechanical auto furling. Compared to the wind turbine WindMax H series with advanced electromagnetic braking overspeed control and aerodynamic blade braking, they are more economical but not as efficient as the WindMax H series. We guarantee that these systems are ISO , CE certified. They are brand new from the factory and they have passed factory quality inspections.
Online shipping rate only applies to US, US territories and Canada. please email sales@magnet4less.com for sea or air shipping quote for any country outside US and Canada.
We only accept Bank Wire Transfer for overseas orders.
2 Year Factory Warranty |
This wind turbine qualifies for federal tax credit and cash rebate from state of California, the manufacturer is Yangzhou Shenzhou Wind-driven Generator Co., Ltd. You may find similar-looking wind turbines on the market, please verify if they have the authentic factory quality even if you are not in California and are qualified for a cash rebate.
CEC Rebate program: The State of California provides a cash rebate for qualified purchases of small wind systems, The California Energy Commission (CEC) is offering cash rebates on eligible grid-connected small wind turbine systems through its Emerging Renewables Program (ERP). For more information, please go to
CEC Wind Turbine Rabate
CE certified
Grid-tie 2 kW Wind Turbine system SWG FD3.6-2000 with battery backup

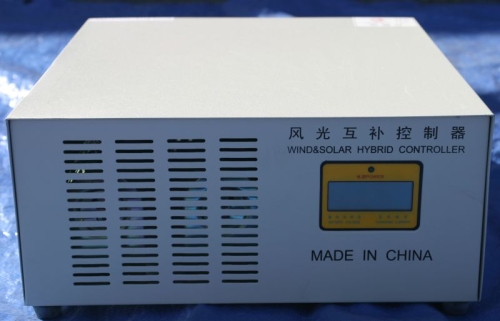

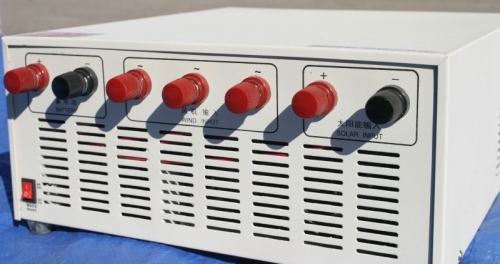

Wind/Solar Hybrid Charge Controller is included to convert AC to DC. Charge controller can handle 2000w wind load and 600w solar load. Hybrid inverter also has built-in dump load function.
Hybrid controller has LCD display to show the charging current and battery voltage.

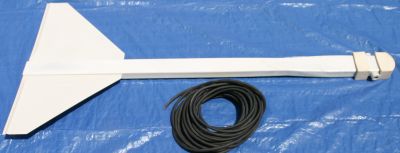

SWG FD3.6-2000 2kw grid-tie system with battery backup includes generator, hub, 3 blades, Tail, nose cone, wind/solar hybrid charge controller, Grid-tie/Off-grid Xantrex XW4548 4500w, 48Vdc, 120V/240V AC, 60Hz, split phase Inverter/charger for grid tie or off-grid applications.
2KW system is a low Torque, low wind system, rated 2000w at 20 mph, startup wind speed is 4.47 mph.
This system is grid-tie/off-grid system with battery backup.
Grid-tie wind systems with battery backup is the best solution. You have the unlimited capacity of the grid at your disposal, and you can send your surplus wind energy to the grid. You can still use your system during a utility failure.
A grid-tied wind turbine with battery backup and hybrid wind/solar output is designed to do provide uninterruptible power at lower cost than batteryless grid-tied wind turbine. Grid-tied wind turbine with battery backup is more reliable than grid-tied, batteryless wind turbine system.
Advantages of grid-tied wind turbine with battery backup and hybrid wind/solar output:
1) If both grid-tied solar and wind generator systems deployed, two separate grid-tied inverters are needed for wind and solar. Only one grid tie interactive inverter is needed for grid-tied wind turbine with battery backup and hybrid wind/solar output simultaneously, the reason is that the grid-tied wind turbine with battery backup and hybrid wind/solar output has a hybrid controller and it can control both wind and solar input.
2) Provide Energy Independence for remote off grid sites.
3) Provide Backup power for during outages.
4) Higher reliability than batteryless grid-tied wind turbine, grid-tied wind turbine is relatively new on the market and there are lots of interoperability issues with the grid-tied inverters.
5) There are only a few grid tied inverter choices, grid-tied inverters must be fully tested to function properly in order to achieve higher efficiency and avoid problems.
In summary, if batteryless wind turbine system is configured right, it should be 7% to 10% more efficient than grid-tied wind turbine with battery backup and hybrid wind/solar output, and easier to to install, but during a utility failure, these systems will not provide any electrical backup. Batteryless grid-tied wind turbine is more expensive due to the higher expense of grid-tied inverters if you have both solar/wind systems grid tied. Grid-tied inverter for batteryless wind turbineare is also less reliable due to the limted time on the market.
Inverter warnings: we don't recommend cheap inverters made in China, because they have serious quality problems and performance is unstable, service life is short on these cheap inverters. They are not UL listed, it won't pass safety inspection. If you are buying these cheap inverters, you run the risk of burning down your house and damage valuable items.
Inverter recommendations: We recommend UL listed inverters made by Xantrex XW inverter XW4548 for this model.
2kw system can be configured either as grid-tie or off-grid systems.
Batteries for off-grid configuration : (battery sold separately)
Eight of the 200 Amp Hour, 12 Volt Sealed AGM Deep Cycle Battery with LTP Terminal (T975 terminal) - 8A4DLTP-DEKA
Batteries for on-grid configuration: (battery sold separately)
Four of the 12 Volt Sealed AGM Deep Cycle Batteries
New alternator design using the most powerful rare earth neodymium magnets to produce maximum power output at low RPM level. Low start up wind speed at 2 m/s.
Heavy duty design with solid Aluminum housing.
Applications: Small air conditioner, small refrigerator, washer, water pump, electric cooker, color TV, lighting, electric fan and battery charging.
WindMax Green Energy reserves the right to change or modify any of the products and their inherent physical and technical specifications without prior notice.
WindMax Green Energy and its affiliates assume no responsibility or liability for any errors or inaccuracies within.
WindMax Green Energy will not be liable for any damage or loss suffered by any person arising out of the reliance of any information in this document.
In any claim against us our liability is limited to the value of the goods you have purchased in the contract which is the subject of the dispute.
ATTENTION TO COUNTRIES OTHER THAN United States: Shipping charges WILL NOT be added to your final checkout total. We will contact you for shipping charges to your location.
Product Specifications
Technical Specifications:
Voltage: DC 48v (DC 120v upon request)
Alternator: Direct drive, 3-Phase AC permanent magnet PMA with the most powerful neodymium magnets
Rated Power Output: 2000 watts
Max Power Output: 3000 watts
Rated Speed: 400 RPM
Rated Wind Speed: 9 m/s or 20 mph
Start-up Wind Speed: 2 m/s or 4.47 mph
Wind Blades: 3 blades per system
Blade Material: Reinforced Fiber Glass
Blade Diameter: 3.2 M (10.6 Feet)
Tower Height: 8 Meters/26 Feet and up depending on siting area
Pipe Size: 5.5" or more Diameter Steel Pipe
Recommended Batteries: 8 x 200AH 12V AGM batteries (2 of battery banks, each battery bank has 4 batteries in series)
Over speed Control: Mechanical auto furling
All technical data is provided by manufacturer. No warranties or guarantees are made, expressed, or implied on information we provided in this document such as performance, power output, etc.
